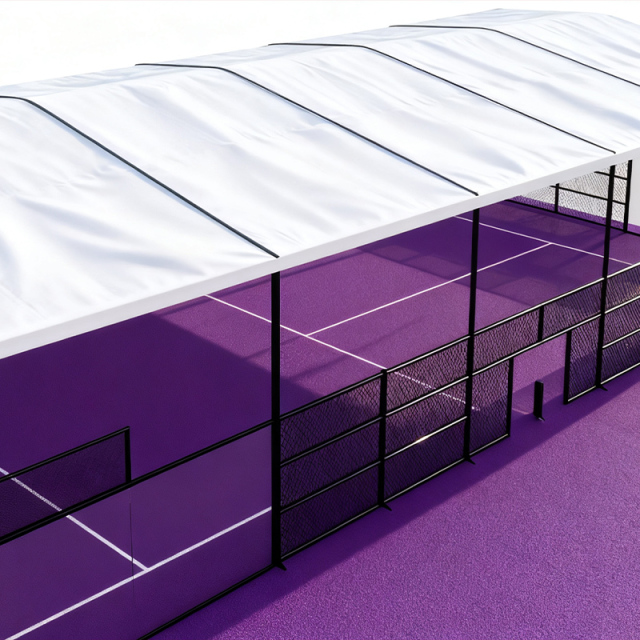

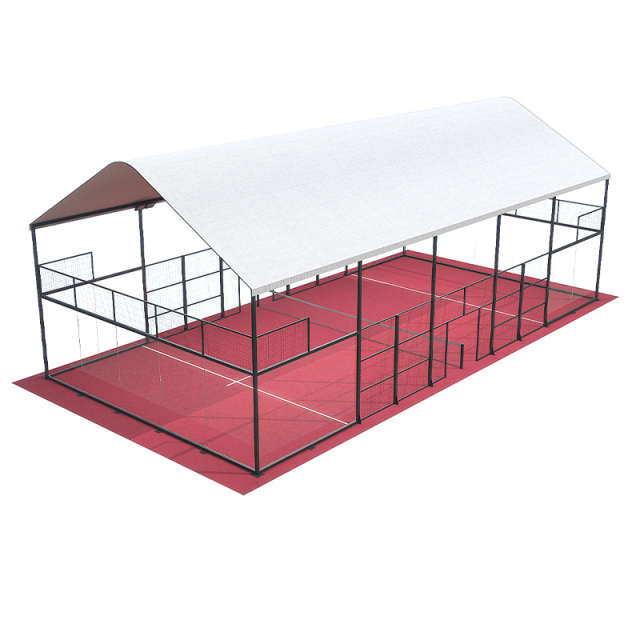

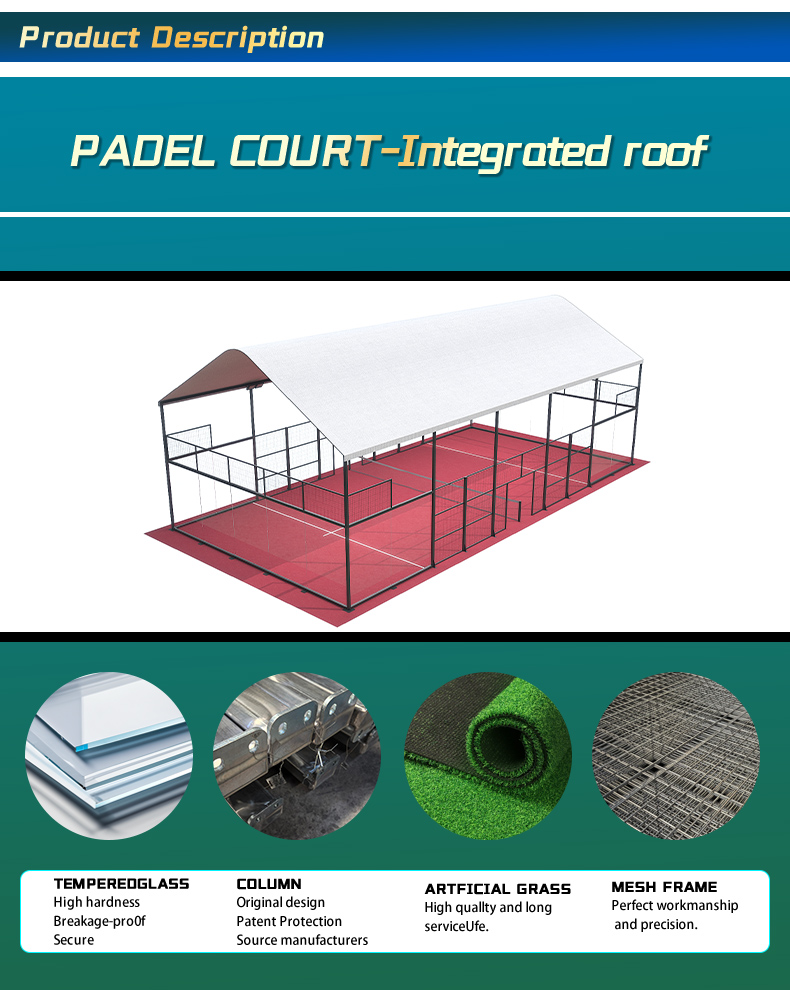

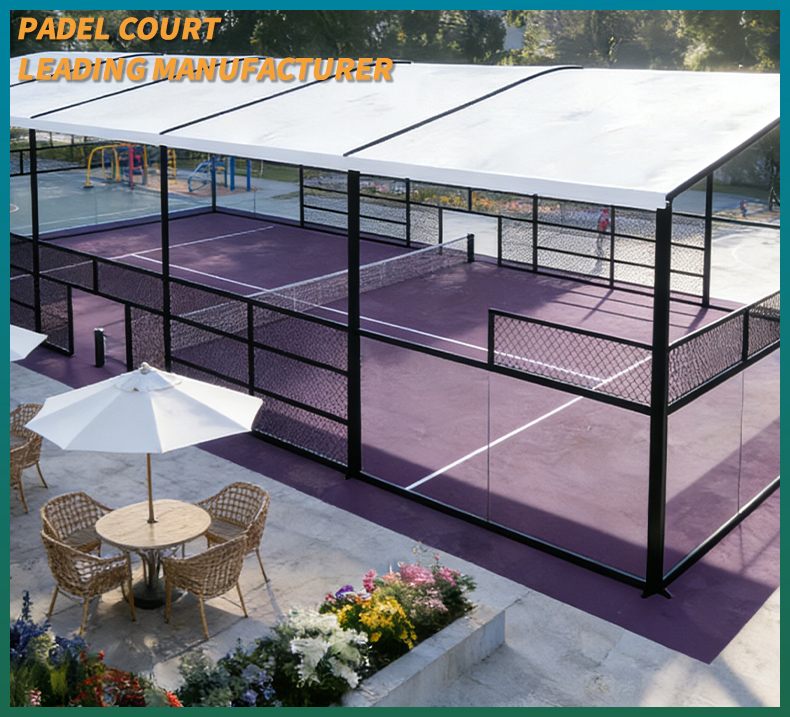

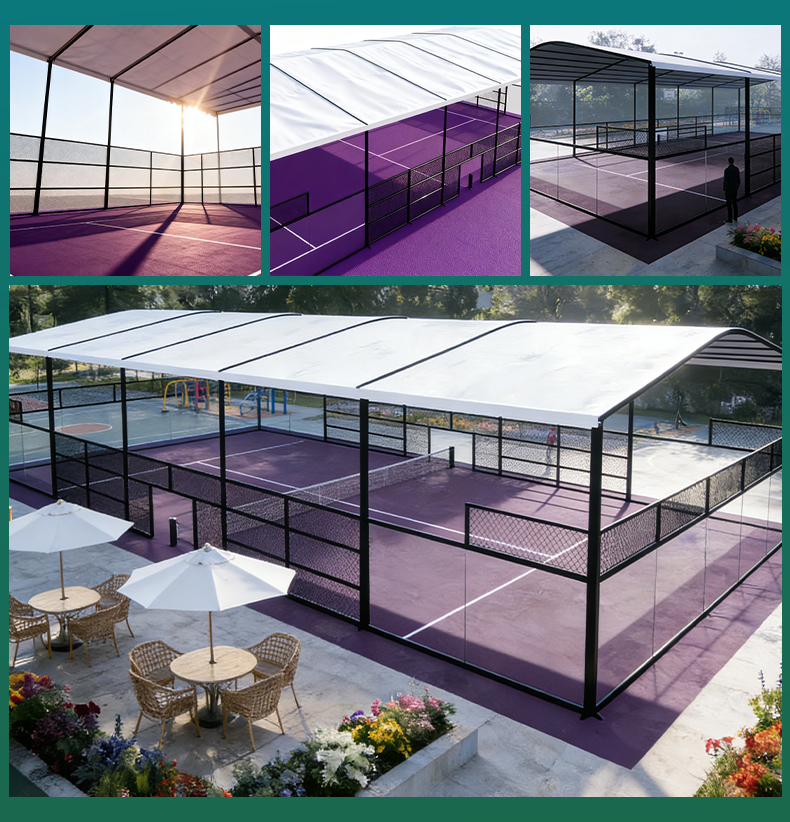

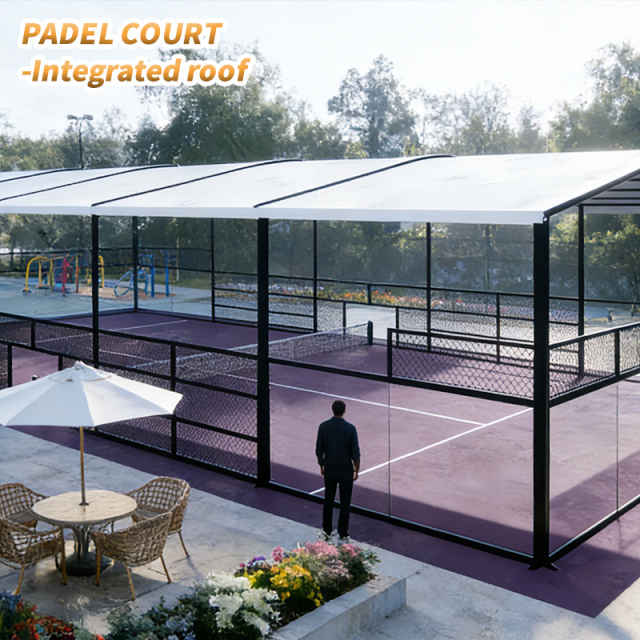

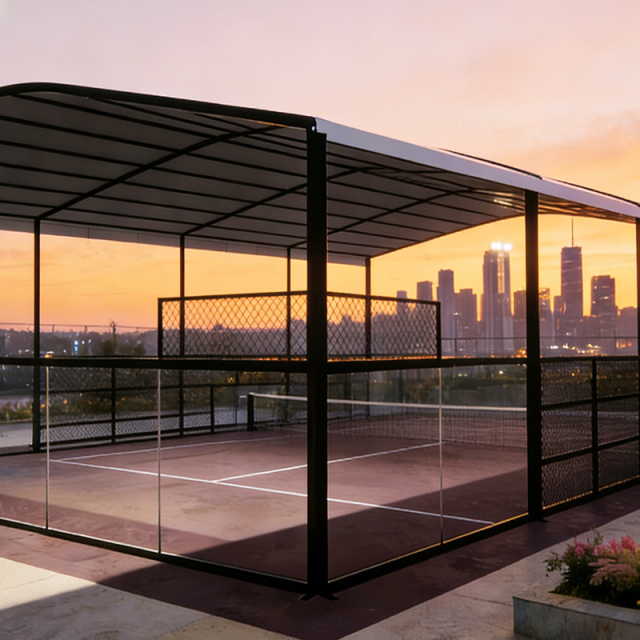

PADEL COURT-Integrated roof

1. Arched Main Beam

• Material: Aluminum alloy profile
• Specification: 166×88×3.0mm (thickness)

2. Crossbar

• Material: Aluminum profile
• Specification: 60×60×2.5mm

3. 11m Span × 22m Long Aluminum Alloy

• National standard: 6061T6
• Performance parameters:

• Tensile strength: 250MPa
• Hardness: 88HV
• Surface treatment (optional): Oxidation or spraying

4. Tarpaulin

• Material: Double-layer PVC fire-retardant scraper cloth (double-layer PVC synthetic fiber)
• Execution standards:

• QB/LT-PT002-2000
• GB/T3830-94
• Key parameters:
• Thickness: 0.59mm
• Weight: 900g
• Tensile strength: Warp 90N/5cm; Weft 2600N/5cm
• Peel strength: Warp 90N/5cm

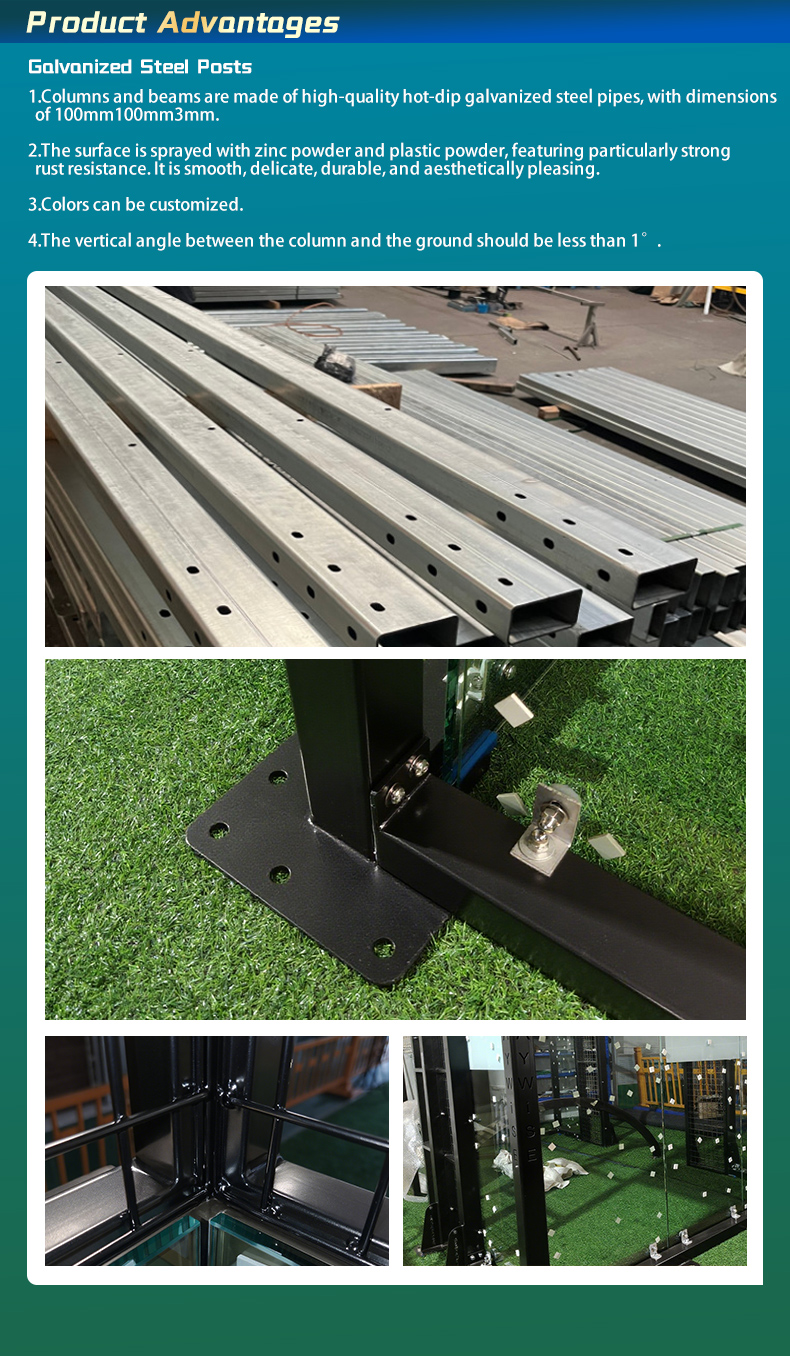

5. Corner Column Options

Option One Corner column: 100*100*3.0mm This solution is suitable for the second solution (standard version)

Option Two Corner column: 80*80*4.0mm This solution is suitable for the third solution (economical version)
